SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

Article number:

12546254

SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
  • SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
  • SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
  • SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
  • SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
€551,-

Order before 23:59 on working days and receive it the next working day.
SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
€551,-

Get notified

    Order today, delivered next working day

    Instant discount when you trade in your old camera
    Rated 4.5 by 33,049 photographers

    Never overpay – a fair price every day

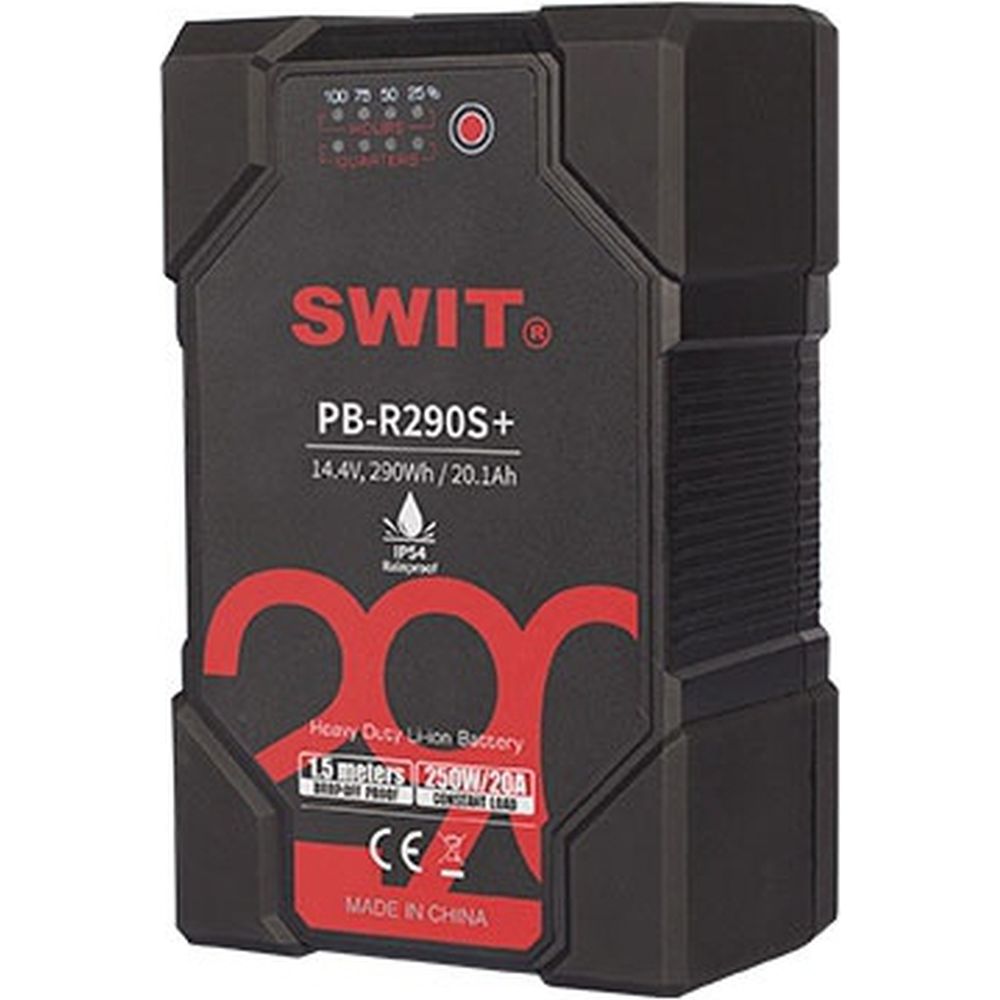

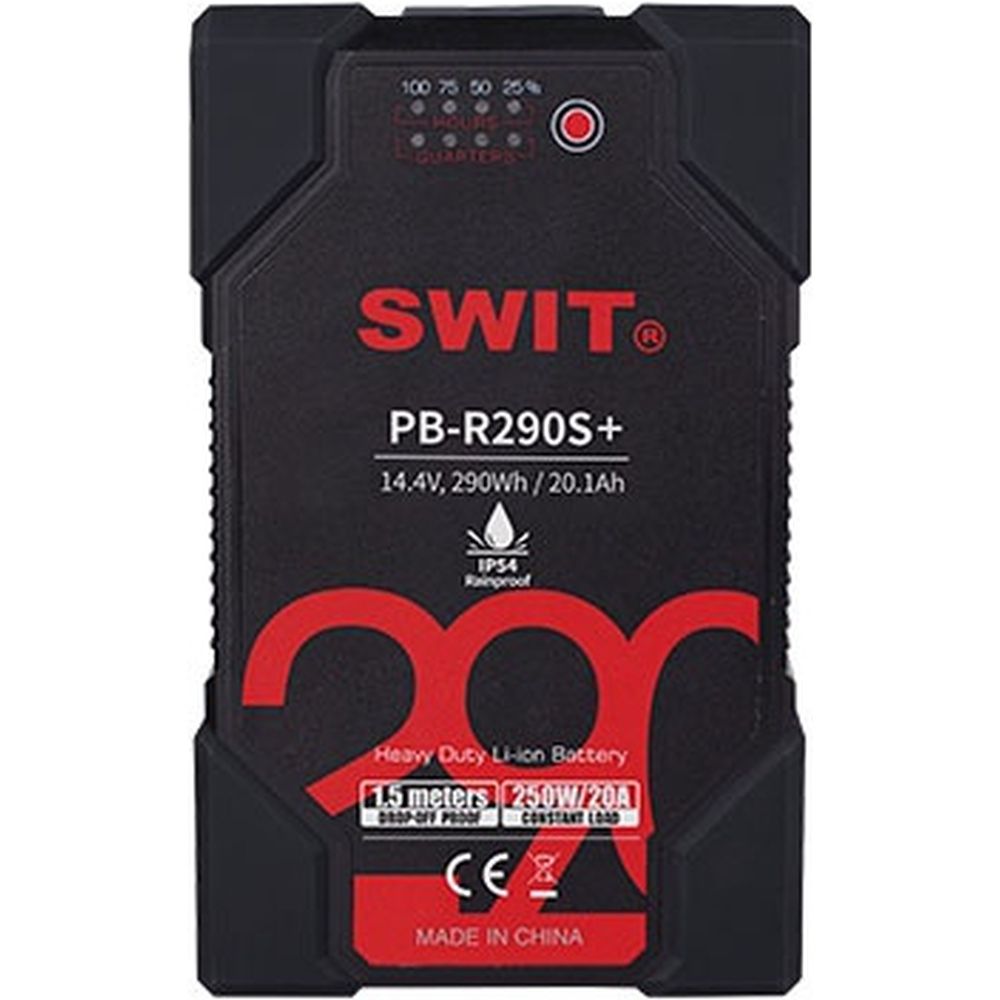

The SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack is a 290Wh V-mount battery for cinema and ENG cameras. The battery features a robust, sealed dual housing, is IP54 rain-resistant and can withstand drops of up to 1.5 m.

SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

The SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack is a 290Wh V-mount battery for cine and ENG cameras. The battery features a robust, sealed dual housing, is IP54 rain-resistant and can withstand drops of up to 1.5 m. The battery supports high load, fast charging and a digital display of power information, making it ideal for use in the field.

The PB-R290S+ features a sealed dual housing that meets the IP54 standard for water resistance in rain, snow and other adverse weather conditions. The dual housing with rubber cover is also strong enough to survive drops of up to 1.5 metres from any angle.

Built from 24 high-quality 18650 battery cells, it achieves a high capacity of 290Wh / 20.1Ah. It can run for approximately 11 hours with standard ENG cameras and approximately 3.5 hours with the ARRI ALEXA.

The PB-R290S+ delivers a minimum of 250W / 20A high load, even at 1% capacity (peak load up to 305W), to power demanding cinema cameras and on-camera devices simultaneously. The high-load cells also ensure the battery lasts longer than standard-load batteries, even under prolonged full load. Overcurrent protection: 24A.

The PB-R290S+ supports 6A fast charging via the SWIT PC-P461S or S-3812S fast charger, saving more than 50% on charging time. The 290Wh PB-R290S+ battery can be charged from 0 to 80% in 2.5 hours and fully charged within 3.8 hours.

The PB-R290S+ features innovative 8-LED power indicators. When the battery is in use or being charged, the LEDs display the current capacity as a percentage. When the battery is running low, the LEDs show the remaining runtime at the current discharge current, accurate to within 15 minutes. The battery uses intelligent SMBUS, compatible with both the Sony and RED camera information systems, and can display the remaining minutes in the camera's Viewfinder.

On the top of the battery there is a D-tap DC output to simultaneously power other on-camera equipment. The maximum output current of the D-tap is 10A.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack

  • IP54 water and dust resistant
  • Strong drop resistance up to 1.5 m
  • Capacity: 14.4 V, 290 Wh
  • 250 W, 20 A constant high load
  • Support for 6 A fast charging
  • Digital power indicators with 8 LEDs
  • Power information display in Sony/RED Viewfinder
  • D-tap power connector

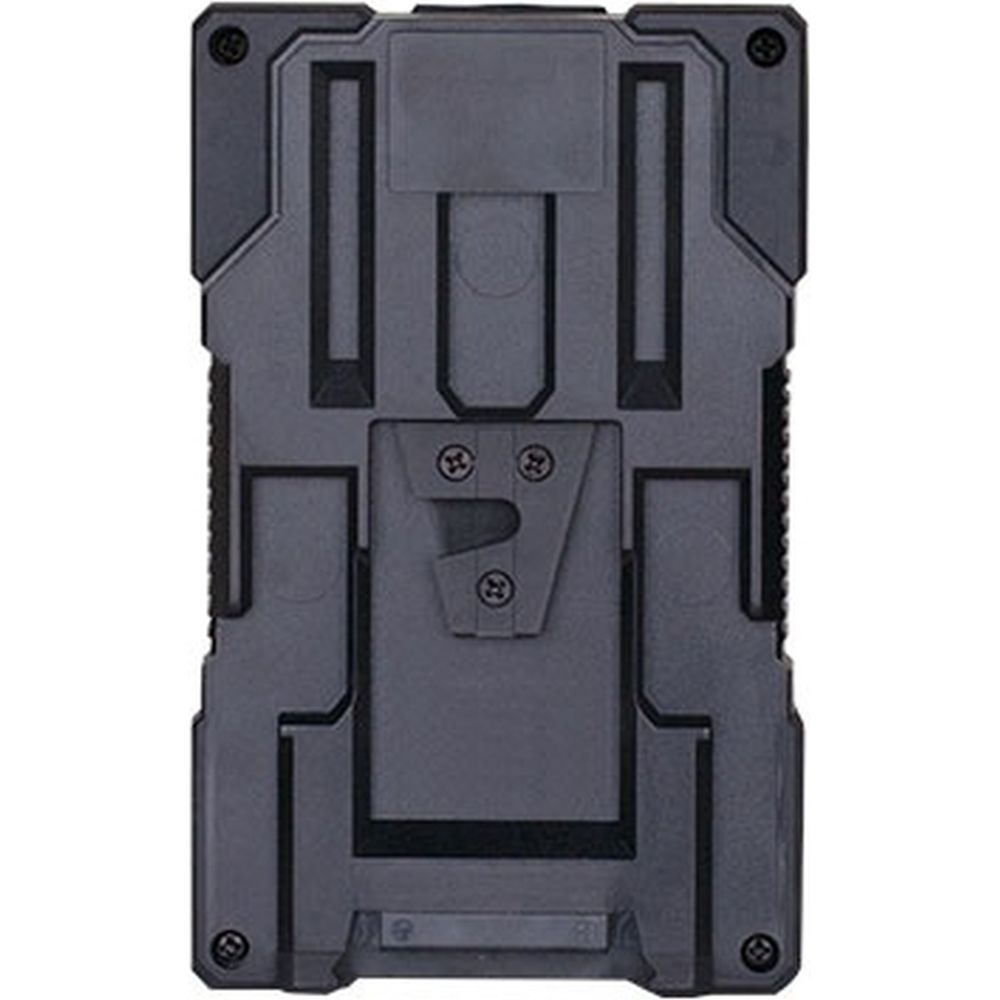

  • V-mount connector
  • Multiple circuit protections
  • Maximum charging current: Fast charging 6 A
  • IP rating: IP54
  • Mount type: V-mount
  • Charging temperature: 0 - 40°C
  • Discharging temperature: -20°C - 50°C (capacity and maximum load may decrease when used below 0°C)
  • Dimensions: 162 x 101 x 69 mm
  • Weight: 1.51 kg

In the Box

  • 1x SWIT PB-R290S+ 290Wh Heavy Duty IP54 Battery Pack
Connections & Connectivity
Outputs 1x D-Tap (10A)
Dimensions & Weight
Length (mm) 162.0 mm
Weight (g) 1510.0 g
Width (mm) 101.0 mm
Height (mm) 69.0 mm
General
Color Black
Max. current (A) 20.0 A
Power
Capacity (Wh) 290.0 Wh
Chemistry Li‑ion
D-Tap ports (Units) 1.0 Units
LED indicator
Max. output (W) 250.0 W
Charging via D‑Tap
Voltage (V) 14.4 V
USB‑C Power Delivery
