SWIT LB-SU75 75Wh/5.2Ah U-type DV battery

Article number:

12565655

SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
  • SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
  • SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
  • SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
  • SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
€204,-
On order
SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
€204,-

Get notified

    Free delivery on orders over €100

    Instant discount when you trade in your old camera
    Rated 4.5 by 32,630 photographers

    Not happy? 14-day return period
The SWIT LB-SU75 75Wh/5.2Ah U-type DV battery is the replacement battery for the Sony BP-U60 and is compatible with Sony camcorders such as the PXW-FX6 / FX9 / FS7 / FS5, PXW-Z200, HXR-NX800, PXW-Z280 / Z190 / X280, Blackmagic PYXIS 6K, etc.

SWIT LB-SU75 75Wh/5.2Ah U-type DV battery

With a nominal voltage of 14.4V, the LB-SU75 has a capacity of 75Wh / 5.2Ah and can run for approximately 2 hours and 50 minutes on a Sony PXW-Z280 camera.

On the side of the LB-SU75 battery there is a D-tap DC output for DC14.4V (nominal voltage). You can connect an on-camera LED light, a monitor, or a wireless transmitter and simultaneously power the camera. The maximum power of the D-tap connector is 50W, 4A.

The D-tap connector can also be used as a charging input with the portable SWIT charger PC-U130B/B2.

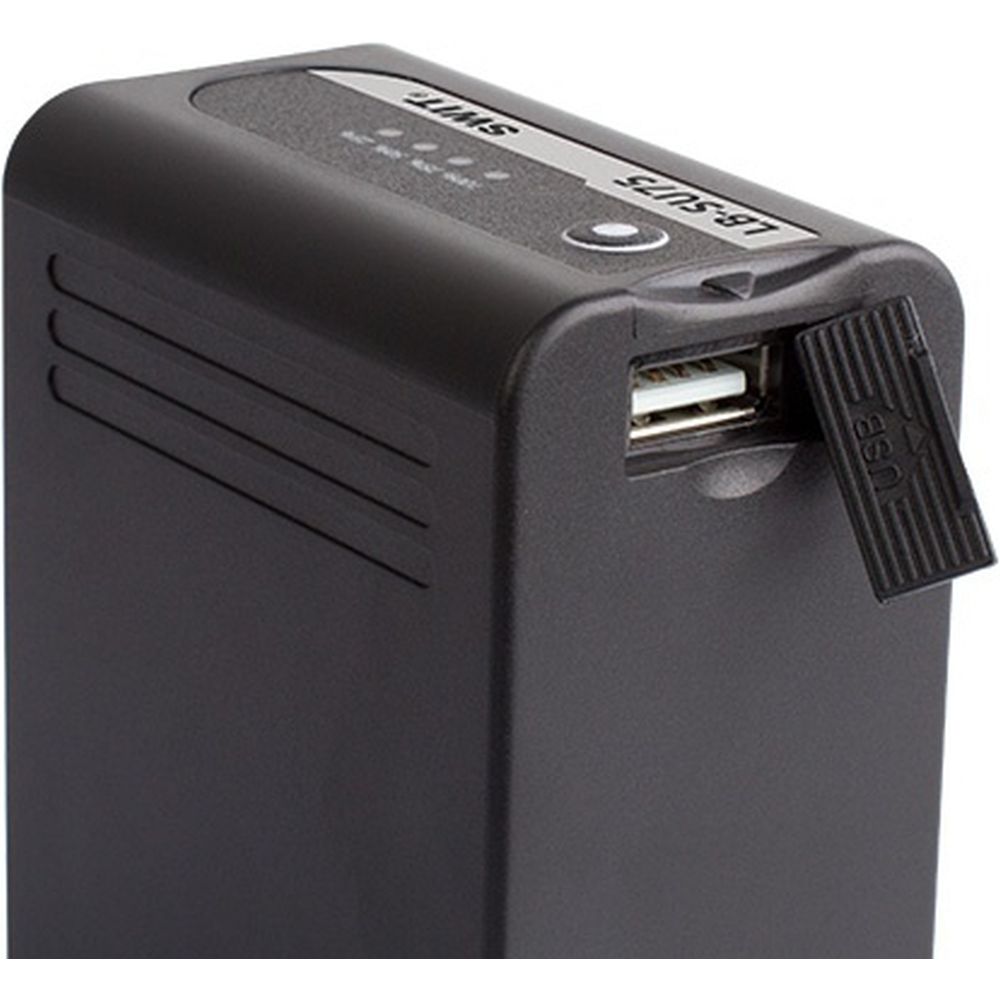

Built-in 5V/2A USB connector

Connect your USB devices, such as a smartphone or tablet, to the USB connector of the LB-SU75, press the power button, and the battery delivers 5V/2A to charge your devices.

The LB-SU75 battery features a 4-level LED power indicator to check the remaining battery capacity. You can quickly see the capacity before using the battery. The power button can also be used to start USB charging.

The LB-SU75 can be charged with the 2-channel SWIT charger S-3602U or the 4-channel charger LC-D421. You can also use the portable SWIT PC-U130B/B2 D-tap charger for the LB-SU75. With the S-3602U/LC-D421, it takes approximately 3 hours and 30 minutes to charge the battery from empty to 100%. With the PC-U130B/B2, it takes 2 hours and 10 minutes to fully charge the battery.

Information on the EU General Product Safety Regulation (GPSR)

SWIT Electronics Europe GmbH

Heerdterbuschstraße 10 / HALLE 9, 41460 Neuss NRW DE

info@swit-europe.com

+49 2131 6632331

Features of the SWIT LB-SU75 75Wh/5.2Ah U-type DV battery

  • Li-ion battery with a nominal voltage of 14.4 V
  • Compatible with SONY BP-U batteries
  • Battery information displayed in camera (some newer models)
  • Capacity: 75 Wh / 5.2 Ah
  • Built-in 14.4 V D-tap output / charging input
  • Built-in 5 V/2 A USB output
  • LED battery indicator with 4 levels
  • Multiple circuit protections
  • Compatible cameras: Sony PXW-FX6, FX9 / PXW-Z280, Z190 / PXW-Z200, HXR-NX800 / PXW-FS5, FS7 / PXW-X280 / Blackmagic PYXIS 6K
  • Dimensions: 70 x 42 x 96 mm
  • Charging temperature: 0–40 °C
  • Discharging temperature: -20 °C–50 °C (Capacity and maximum load may decrease when used below 0 °C)
  • Weight: 430 g

In the Box

  • 1x SWIT LB-SU75 75Wh/5.2Ah U-type DV battery
Dimensions & Weight
Length (mm) 70.0 mm
Weight (g) 430.0 g
Width (mm) 42.0 mm
Height (mm) 96.0 mm
General
Compatible brand Sony
Power
Capacity (mAh) 5200.0 mAh
Chemistry Li‑ion
