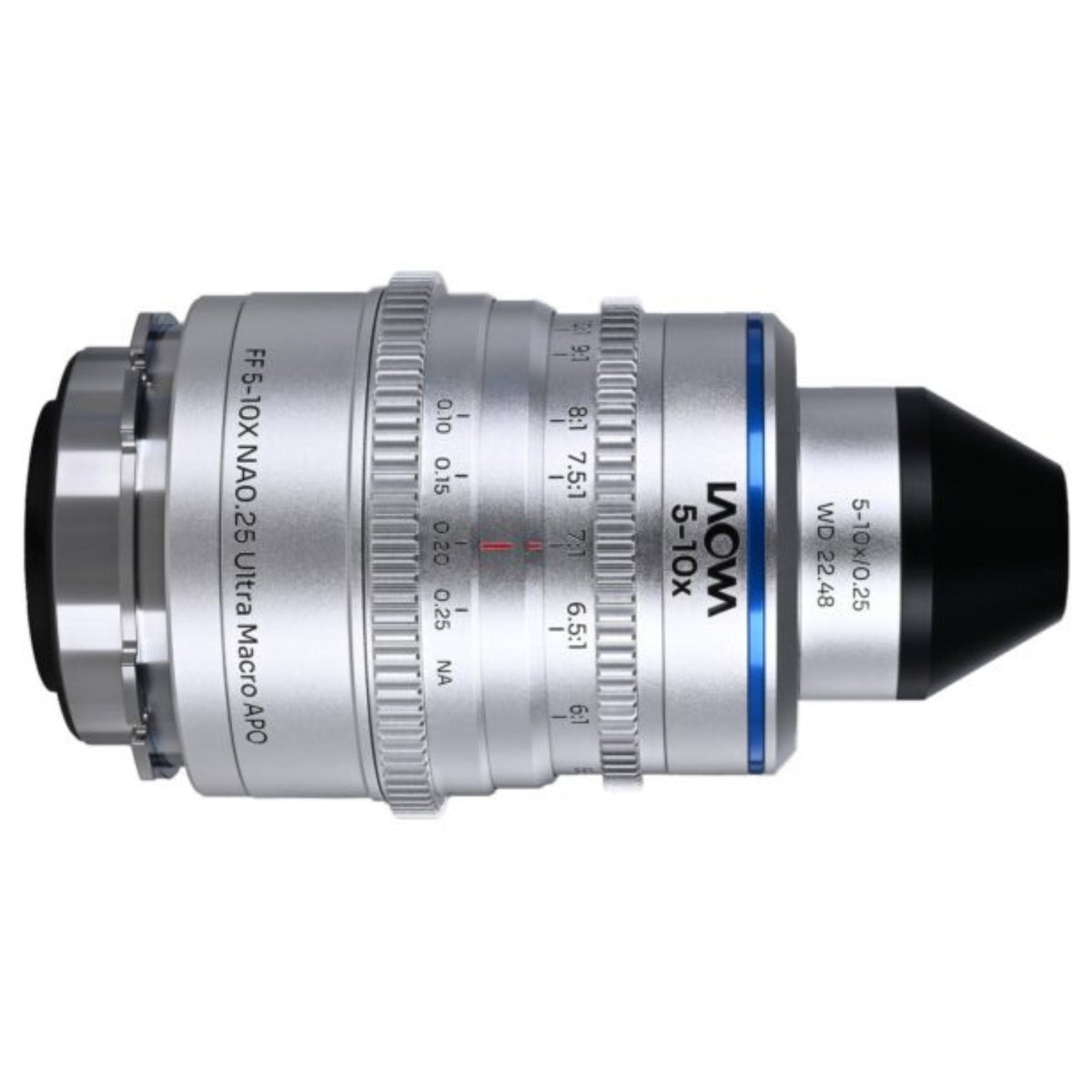

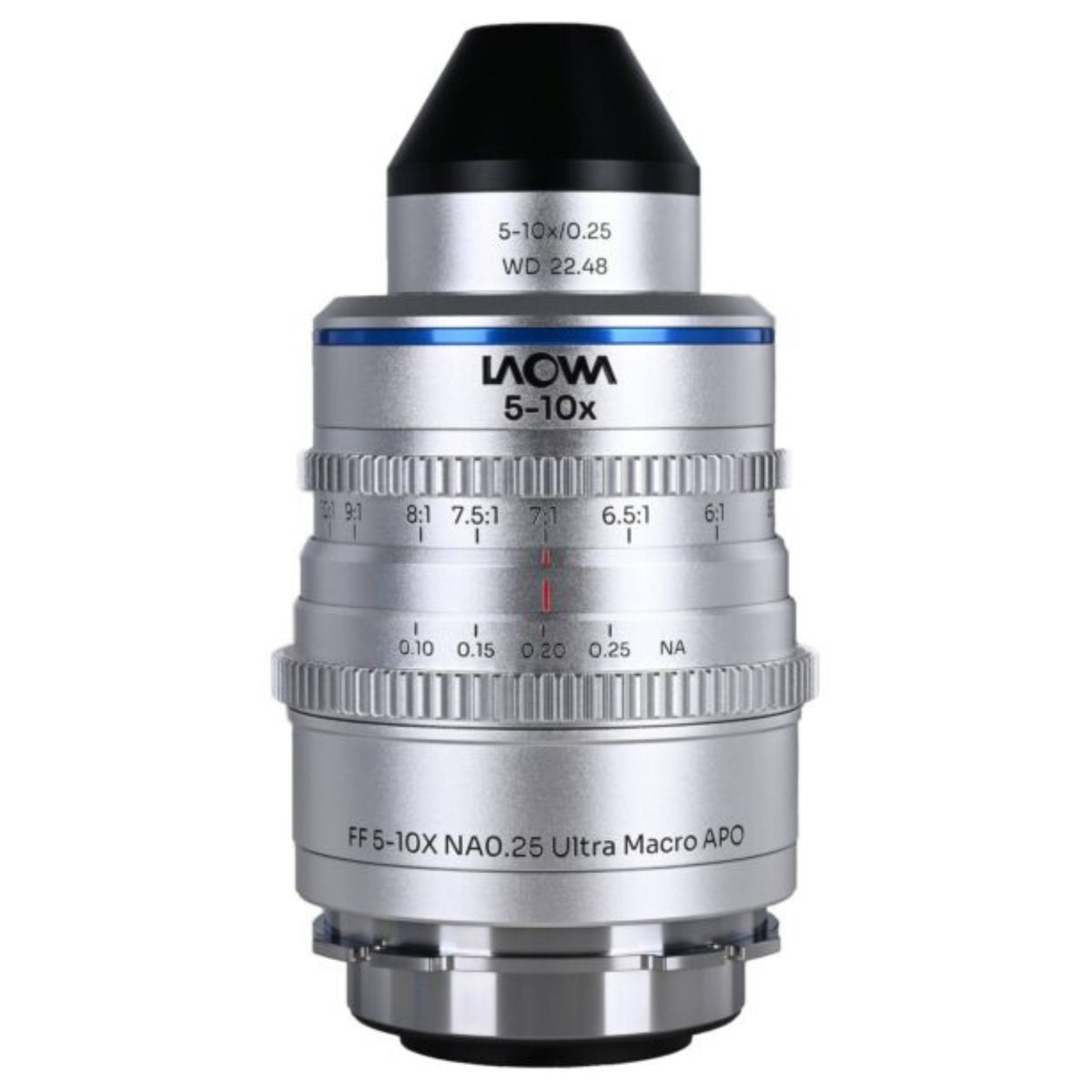

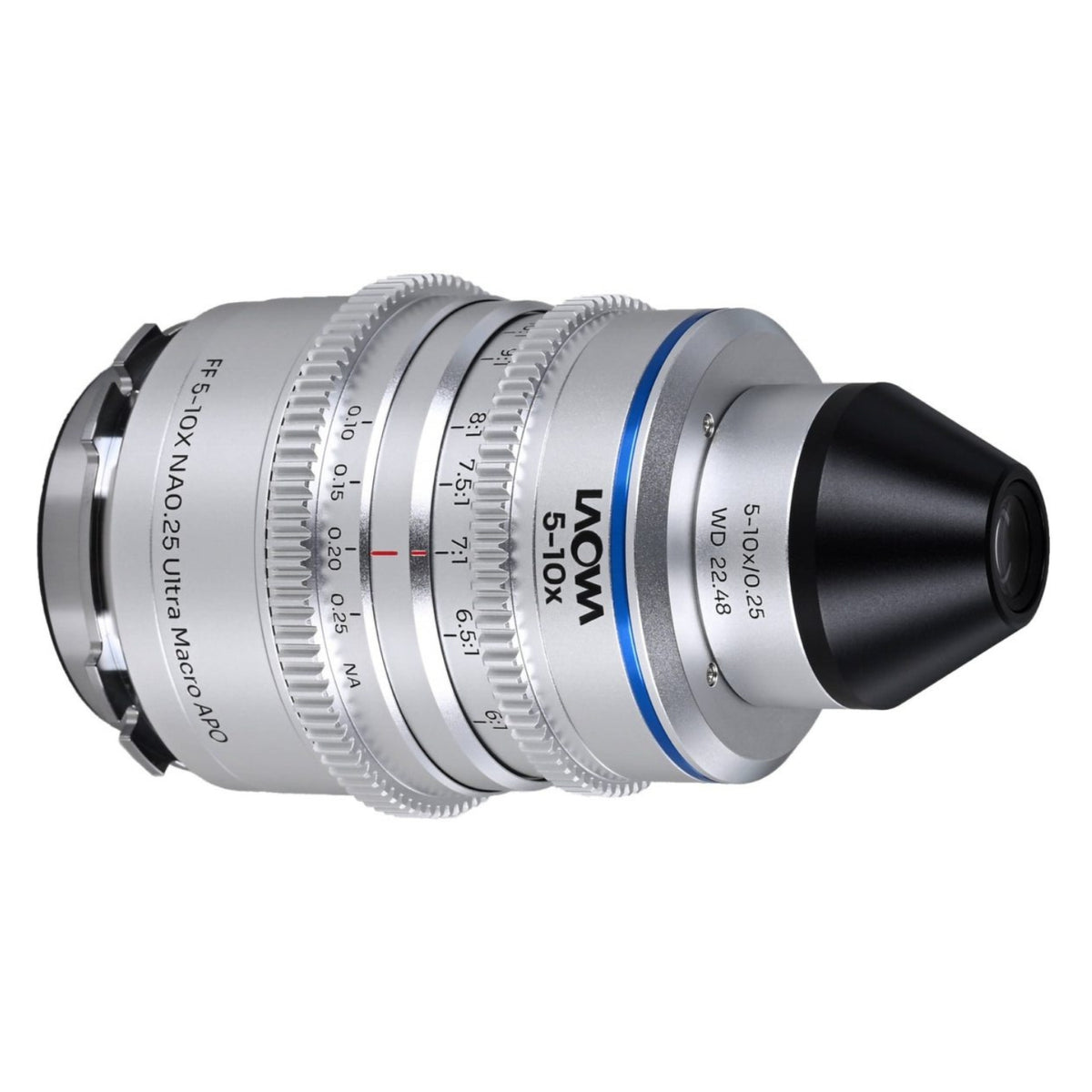

Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL

Article number:

12589353

Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
  • Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
  • Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
  • Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
€1829,-
On order
Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL
€1829,-

Get notified

    Order today, delivered next working day

    Instant discount when you trade in your old camera
    Rated 4.38 by 33,189 photographers

    Never overpay – a fair price every day
The Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine Lens - PL is the macro lens for video and film productions, with an interchangeable ARRI PL mount. You magnify from 5X to 10X at a fixed working distance of about 22.5mm, without needing to refocus. Thanks to the focus and iris gears (0.8 MOD), the lens connects directly to your follow focus system.
  • Magnifies from 5X to 10X at a fixed working distance of about 22.5mm, without refocusing
  • Gears with 0.8 MOD pitch on aperture and zoom, so you can connect directly to your follow focus system
  • Comes with a tripod collar and two 15mm rods, so you can support the lens firmly in your rig
  • Manual focus, no electronic communication

Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine Lens - PL

The Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine Lens is built for cinematographers who want to capture macro footage in commercial, creative and scientific productions. The lens offers a magnification range of 5X to 10X at a fixed working distance of about 22.5mm, so you switch magnification without moving your camera or subject.

The parfocal design holds focus while the lens's physical length stays constant during zooming. The internal zoom construction and the apochromatic correction, which virtually eliminates chromatic aberration, deliver a stable, color-accurate image at every magnification. Both the iris and the zoom ring feature gears with a 0.8 MOD pitch, so you connect directly to your follow focus system.

The lens ships with an interchangeable ARRI PL mount, a tripod collar and two 15mm rods, giving it solid support in your rig.

Information on the EU General Product Safety Regulation (GPSR)

Lanteos B.V.

Parlevinkerweg 44, 5928 NV Venlo, The Netherlands

Features of the Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine - PL

  • Focal length 17.5 mm
  • Aperture: f/1.7
  • 11 aperture blades
  • Lens construction of 17 elements in 12 groups
  • Magnification range 5X to 10X
  • Fixed working distance of approximately 22.5 mm
  • Apochromatic (APO) correction against chromatic aberration
  • Parfocal design: physical length stays constant while zooming
  • Aperture and zoom gears with 0.8 MOD pitch
  • Manual focus, no electronic communication
  • Suitable for full-frame sensors
  • Interchangeable ARRI PL mount
  • Rear filter thread 37 mm
  • Diameter 70.2 mm
  • Length 12.75 cm
  • Weight 609 grams

In the Box

  • Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine Lens (ARRI PL)
  • Tripod collar
  • 2x 15mm rods
  • Front cap
  • Rear cap
General
Color Black
Focus & Stabilization
Min. focusing distance (cm) 2.2 cm
Focal length (max) (mm) 17.5 mm
Focal length (min) (mm) 17.5 mm
Aperture blades (Units) 11.0 Units
Max. aperture (f/) 1.7 f/
Maximum magnification (x) 10.0 x
