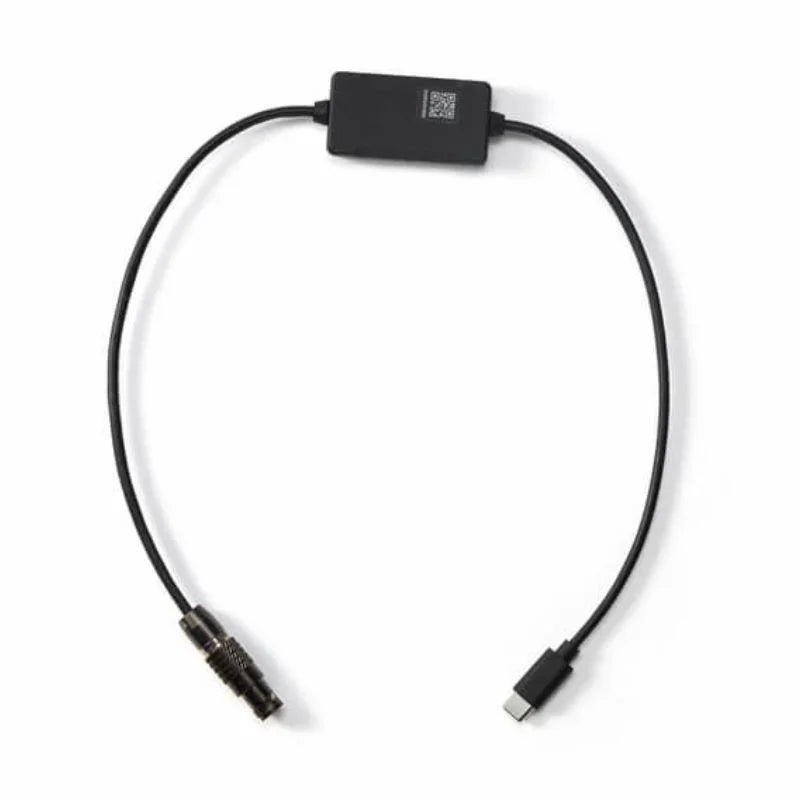

The DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) connects the SDR Transmission 2 transceiver to the Ronin 2 or Master Wheels, so you can control the gimbal wirelessly and power the transceiver through the gimbal.
  • Locking connector stays put during car shoots and intensive use
  • Wireless gimbal control via the DJI Ronin app
  • Transceiver is powered by the gimbal, no separate battery needed
  • For Ronin 2 and Master Wheels only, not for the RS series
  • Camera control requires a separate Multi-Camera Control Cable

DJI SDR Transmission 2 Gimbal Control Cable USB-C to 4-pin

The DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) is the connecting cable between the SDR Transmission 2 transceiver and the Ronin 2 or Master Wheels. The 4-pin connector is a round locking connector that clicks firmly into the port, so the connection stays secure even on a moving car or during intensive use.

When you connect the cable to the Ronin 2, you can control the gimbal wirelessly through the DJI Ronin app: gimbal control, recentering the gimbal and starting or stopping a recording on the camera, provided the stabilizer is already connected to a camera. If you use Master Wheels, you control the Ronin 2 or a compatible RS stabilizer on the transceiver (TX) with it, and you can likewise start and stop the recording on the camera. In both cases the transceiver is powered via the gimbal, so you do not need a separate battery or USB power supply.

Good to know: for remote camera control you also need a Multi-Camera Control Cable between the stabilizer and the camera in addition to this cable. If you use the transceiver via the quick-release plate on the stabilizer, a native vertical setup is not possible. If you work with an RS 4 Pro, RS 4 or RS 3 Pro, you need the USB-C to CAN version instead of this cable.

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI SDR Transmission 2 Gimbal Control Cable LEMO

  • Connects the SDR Transmission 2 transceiver to Ronin 2 or Master Wheels

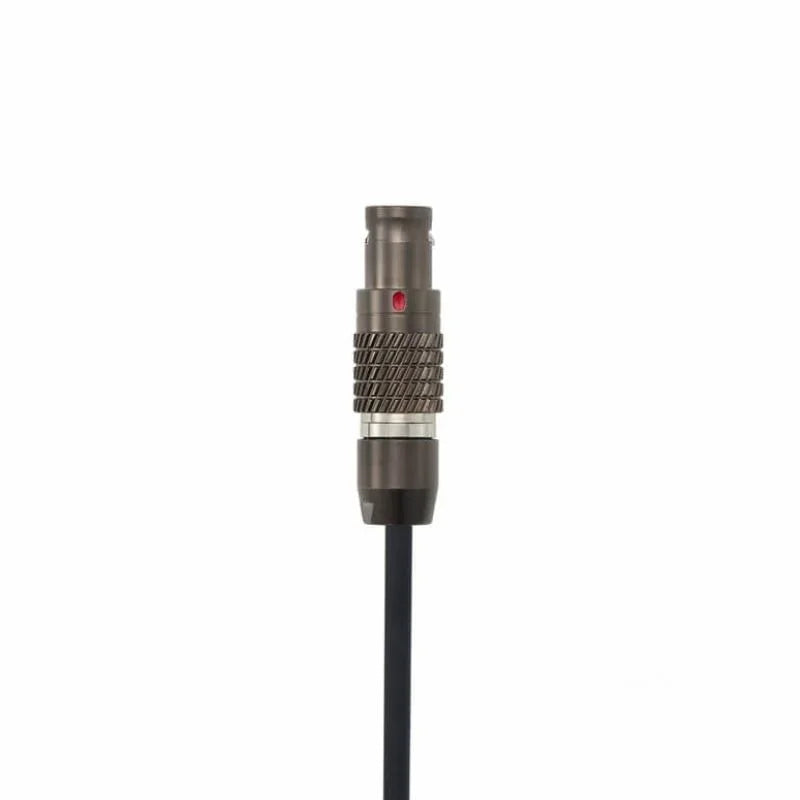

  • 4-pin locking connector (LEMO type) on the gimbal side

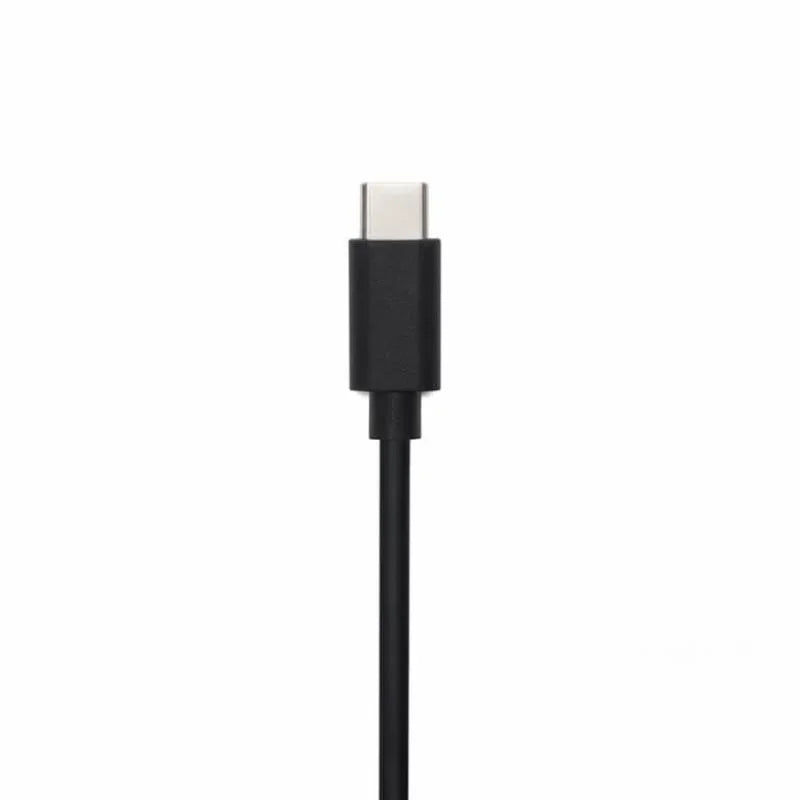

  • USB-C connector on the transceiver side
  • Length: 50 cm
  • Supports gimbal power supply via the stabilizer
  • Supports wireless gimbal control via the DJI Ronin app
  • Supports starting/stopping recording on the camera (stabilizer must be connected to the camera)

In the Box

  • DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin)
Connections & Connectivity
Connector A USB-C
Connector B Other
Cable type Sync
Dimensions & Weight
Cable length (m) 0.5 m
General
Color Black
