DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

Article number:

12392425

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

The DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit is an all-in-one camera/gimbal system specially designed for independent videographers to use both individually and in a crew.

Stabilization & dynamic range

This camera uses 4-axis stabilization (4D) and gives videographers more flexibility. The vertical Z-axis stabilization is built into the Zenmuse X9-6K full frame camera and the gimbal has 3-axis stabilization. The Zenmuse X9 camera also supports dual native ISO (800/5000), so you can take impressive images even in the evening with rich details and minimal noise. Effortlessly capture highlights and lows and all transitions between them in the most challenging lighting situations thanks to the 14+ stops of dynamic range of the Zenmuse X9 camera. Direct sunlight and backlit scenes are no longer a challenge.

Materials & modular design

This cinema camera system from DJI is also made of a combination of lightweight carbon and aluminium/magnesium alloy, so that your setup remains as light and portable as possible. The design of this DJI cinema camera offers space for image recording, stabilization, focus systems and wireless control and file transfer. In this way, you can get started quickly. The combination of materials and the modular design make the DJI Ronin 4D very suitable for content creators, Indie filmmakers and large-scale film productions.

Recording formats & ACES workflow

The Ronin CineCore 3.0 image processing technology enables internal recording in Apple ProRes 4444 XQ, ProRes 422 HQ, and H.264 video. The full frame camera delivers images up to 6K (60fps) and 4K (120fps) in ProRes 4444 XQ. As a videographer, you have various professional recording options at your disposal. Not only the CineCore 3.0 technology, but also the ACES workflow support makes the Ronin 4D perfect for use as a second camera in larger video productions. The images can be stored internally via the CFexpress Type B connection or the DJI PROSSD 1TB (optional) and externally via a USB 3.1 Type-C connection.

LiDAR & Manual Focus

Thanks to the LiDAR Focus System, you even maintain the autofocus with motion blur when the subject moves quickly. ActiveTrack Pro ensures that the camera automatically maintains focus during tracking shots. With just one push of a button, you can put the camera in Sports mode, so that the gimbal responds quickly to your movements. With the focus motor, autofocus is even available on manual lenses. The Automated Manual Focus mode gives you the freedom to manually focus as the camera itself rotates the focus wheel when the focus point is shifted. Wireless control of the camera and the focus system is of course also possible.

Image Transfer & Combo Kit

The DJI O3 Pro Video Transmission technology enables long-distance image transmission, which is ideal for larger productions. The camera's battery lasts up to 2.5 hours of recording time and is fully charged in 1.5 hours. An auto-heating function is also available for cold weather conditions. The 4D also features internal microphones for dual-channel 24-bit audio recordings. You can also use the 3.5 mm and XLR ports for expanded recording options. The combo kit consists of various extensive accessories with which you can equip the 4D as desired. Think of a TB50 battery, LiDAR Range Finder, modular monitor and handy grips and various lens mounts.

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

  • All-in-one camera with professional gimbal system with 4-axis stabilization
  • Cinema camera in a compact, modular design
  • Features the Zenmuse X9-6K Gimbal full frame video camera
  • Delivers images in 6K (60fps) and 4K (120fps) for internal 4444 XQ recording
  • Has a built-in touchscreen monitor of 5.5 inch 1000cd/m²
  • With various lens mounts for extensive shooting options
  • Has a LiDAR Range Finder/Focus Module for manual focus
  • Suitable for remote control via 1 transmitter
  • Made of light materials (carbon and aluminium/magnesium alloy)
  • With ACES workflow for easy collaboration with other cameras
  • 800/5000 dual native ISO and 14+ stops dynamic range
  • With built-in ND.03 to ND2.7 filters for changing light conditions

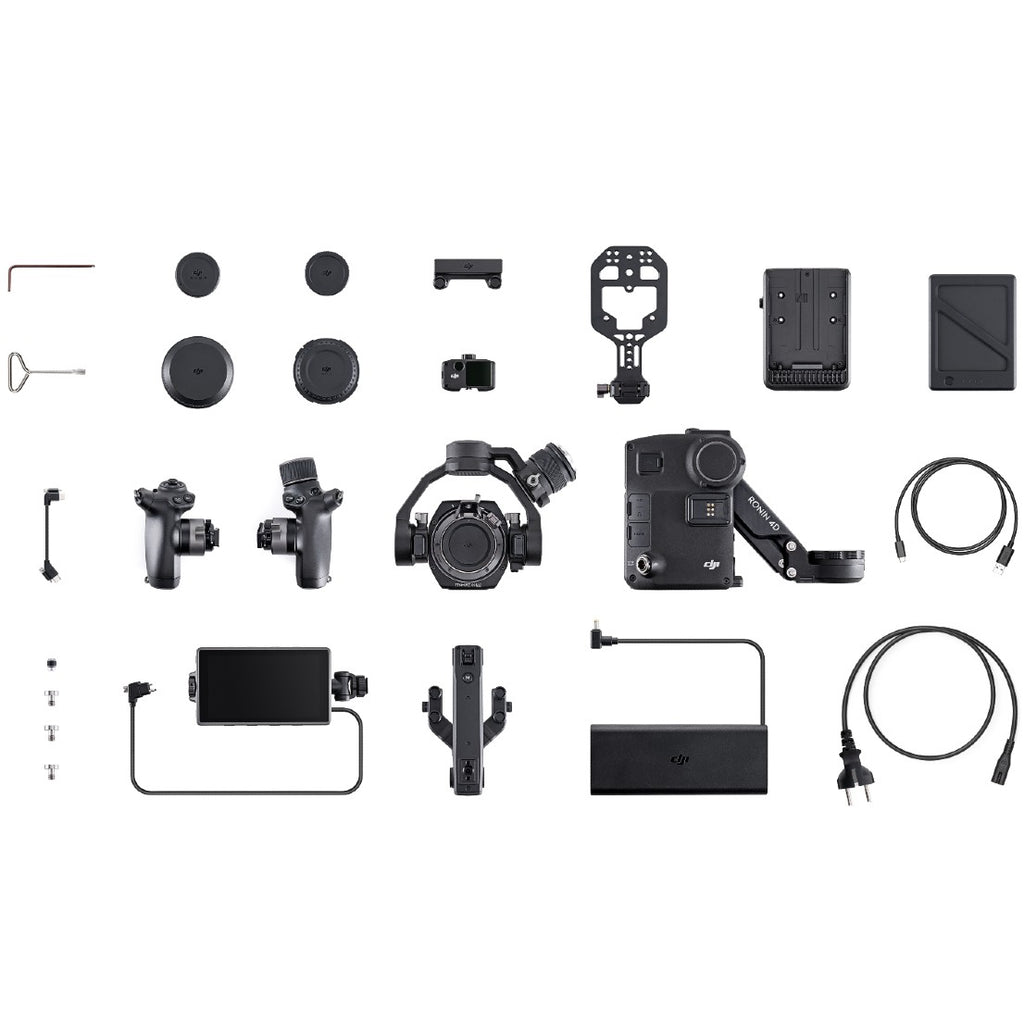

In the Box

  • Zenmuse X9-6K Gimbal camera and X9 Gimbal Base Cap
  • Body
  • LiDAR Range Finder and LiDAR Range Finder/Focus motor cable
  • DL mount and DL mount body cap
  • Left and right hand grip with 2x hand grip straps (left and right)
  • Top handle
  • High-Bright Main monitor
  • TB50 Intelligent battery, battery mount and charging adapter
  • Power adapter
  • USB-A to USB-C cable
  • DX mount body cap and lens cap
  • Ronin X9 Gimbal Base Cap
  • Baseplate
  • Hand grip extended control
  • 3mm hex key (ball-end)
  • 3x 10mm 1/4"-20 screws
  • 8x AC power cable
  • 2x M2-3 screw (3mm)
  • Flat-head screwdriver
  • Ronin 4D carrying case
  • LiDAR Range Finder quick start guide
  • Ronin 4D quick start guide
Connections & Connectivity
HDMI type Full-size (type A)
Headphone output
NFC
SDI
Timecode in/out
Wi‑Fi
XLR audio
USB-C
Dimensions & Weight
Length (mm) 309.0 mm
Weight (g) 4670.0 g
Width (mm) 290.0 mm
Height (mm) 277.0 mm
General
Recording media Other
Audio
Phantom power (48V)
Microphone input (3.5mm)
Number of audio channels (channels) 2.0 channels
Built-in microphone
Microphone (mono/stereo) Stereo
Display & Viewing
Screen diagonal (in) 5.5 in
Touchscreen
Included Accessories
Battery
Charger
AC adapter
Storage & Media
Card slots (Units) 1.0 Units
Optical zoom (x) 1.0 x
Recording & Codecs
10-bit recording
HDR (HLG/PQ)
Built-in ND
Recording codecs Apple ProRes RAW HQ
Relay/backup recording
Video resolution max 6K
Max. bitrate (Mbps) 50.0 Mbps
Proxy recording
Slow motion
Sensor
Sensor format Full Frame
ISO lower limit (ISO) 200.0 ISO
Compatibility
Lens mount PL-Mount
Focus & Stabilization
Image stabilisation
Camera Functions
Autofocus present
Live streaming
