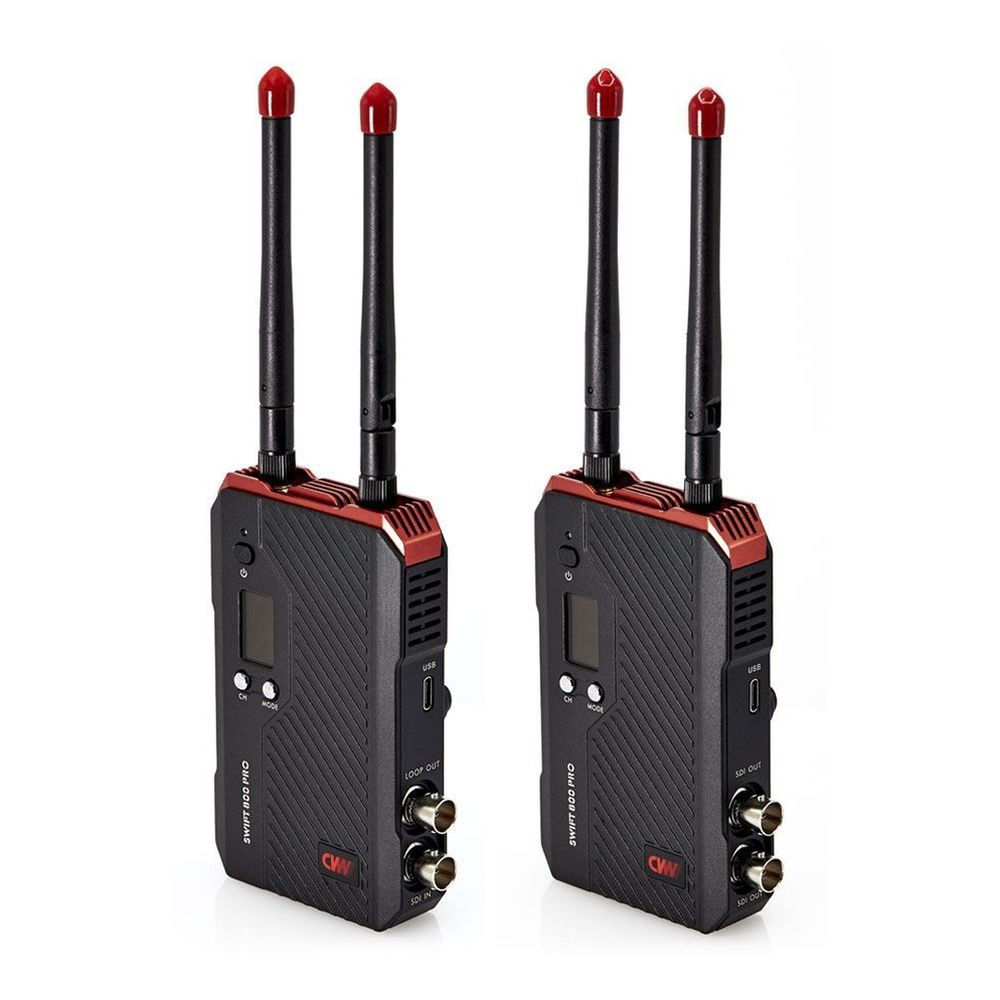

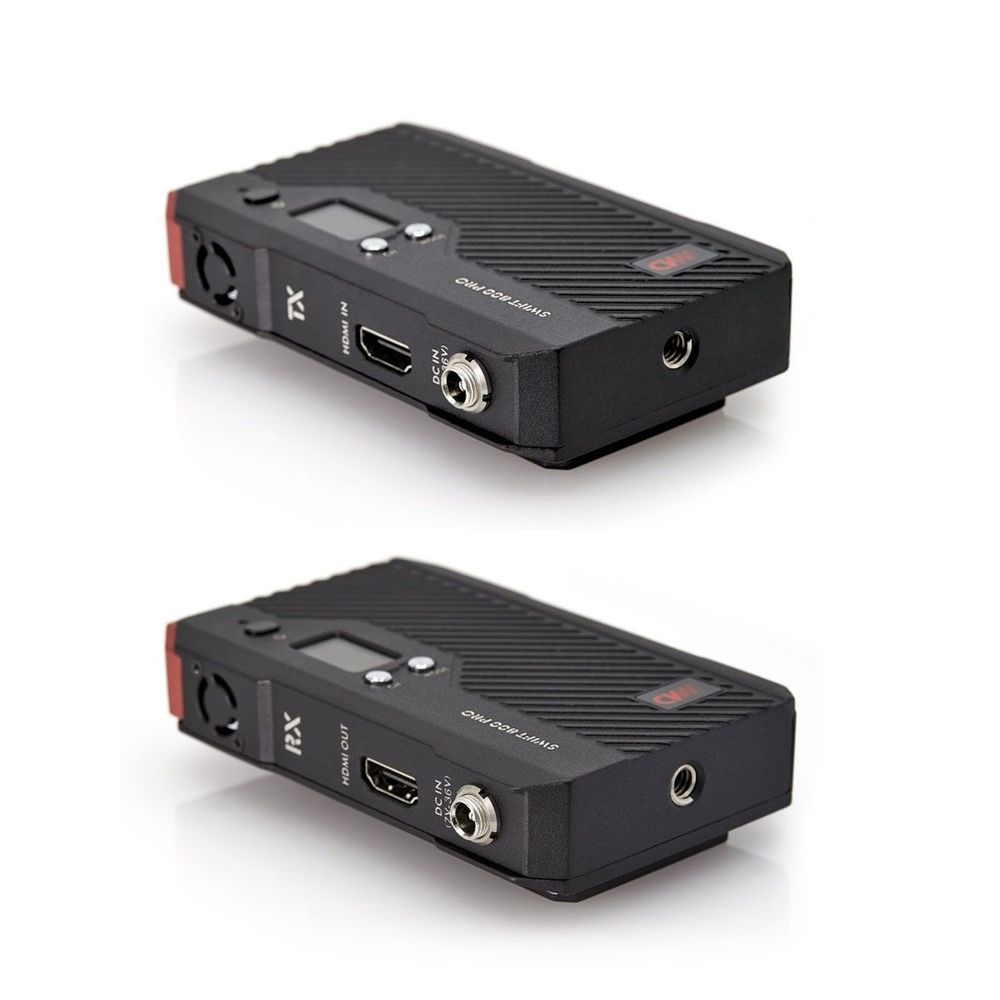

CVW Swift800 Pro Video Radio Connection Kit

Article number:

12488937

CVW Swift800 Pro Video Radio Connection Kit
CVW Swift800 Pro Video Radio Connection Kit
  • CVW Swift800 Pro Video Radio Connection Kit
  • CVW Swift800 Pro Video Radio Connection Kit
  • CVW Swift800 Pro Video Radio Connection Kit
€831,81
On order
CVW Swift800 Pro Video Radio Connection Kit
CVW Swift800 Pro Video Radio Connection Kit
€831,81

Get notified

    Order today, delivered next working day

    Instant discount when you trade in your old camera
    Rated 4.5 by 33,075 photographers

    Never overpay – a fair price every day
The CVW Swift800 Pro video radio connection set is an affordable video radio connection for SDI and HDMI cameras. The SWIFT 800 Pro video is designed for professional film and television production and live streaming.

CVW Swift800 Pro Video Radio Connection Set

The CVW Swift800 Pro video radio connection set is an affordable video radio connection for SDI and HDMI cameras. The SWIFT 800 Pro video is designed for professional film and television production and live-streaming.

With this model, the popular entry-level Swift 800 series has been consistently further developed. In addition to the HDMI connections, the transmitter and receiver have additional SDI inputs and outputs. This gives you even more flexibility when choosing your camera.

With the free app for Android and iOS, you can control the image detail and focus live via smartphone and tablet. Up to 4 mobile devices can be used simultaneously. For pure control, the transmitter is sufficient here. The receiver is required separately for playback on the mixer.

Features of the CVW Swift800 Pro Video Radio Connection Kit

  • SDI/HDMI connections
  • Receiver with dual SDI outputs
  • Low latency of 70 ms
  • DFS function
  • Free app for monitoring and recording with mobile devices
  • Frequency range (EU): 5.1 - 5.8 GHz
  • Video in Full HD 1080/60p
  • Fan can be switched on and off at the touch of a button
  • Frequency selection: manual with buttons (operated via LED display)
  • mounting options: internal thread on the bottom (adapter included)
  • Power consumption transmitter: < 7.2W
  • Power consumption receiver: < 6W
  • Antenna mode: 2T2R external antenna
  • Transmission delay: 70ms (point to point), 170-220ms (RTSP mode)
  • Button: 1. Power; 2. CH; 3. Mode
  • Transmission distance: 250m
  • Temperature: -10°C - 45°C (operating); -40°C - 80°C (storage)
  • Dimensions (WxDxH): 115 x 70 x 21 mm
  • Weight (per piece): 220 grams

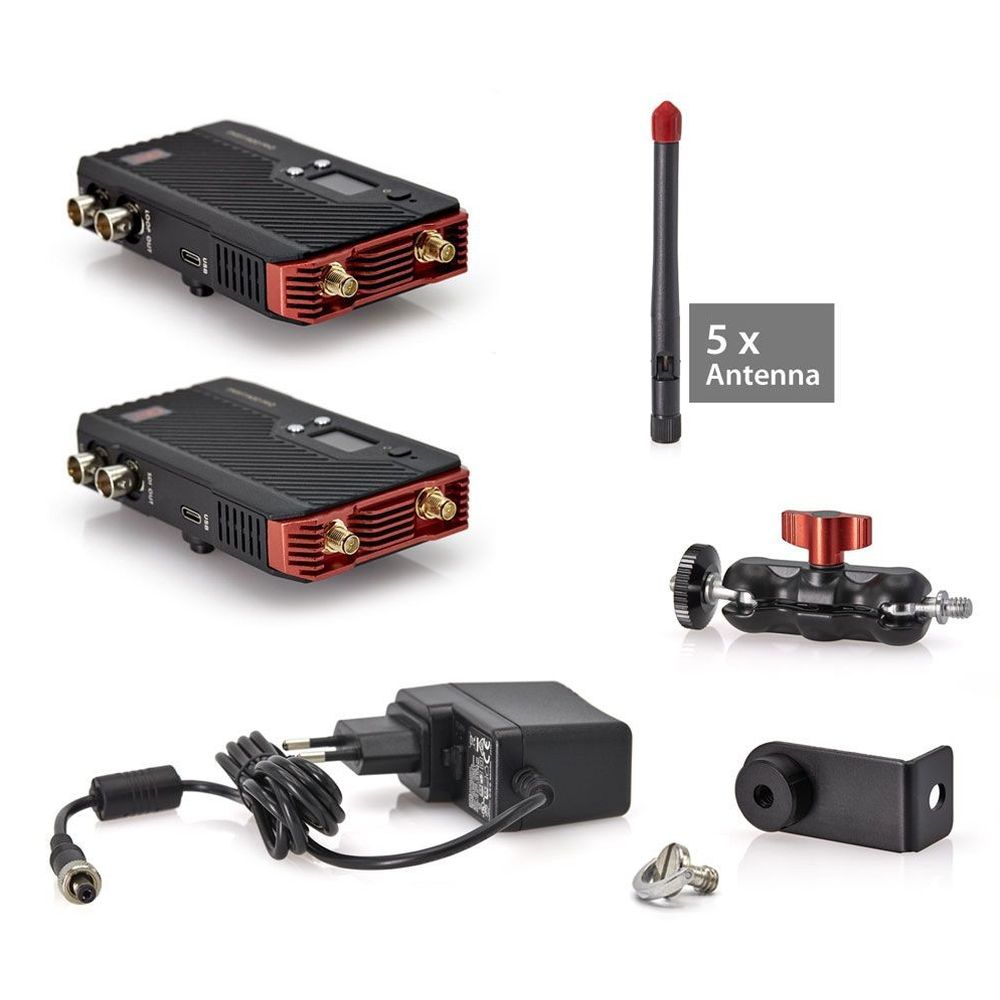

In the Box

  • 1x Transmitter (with 2 antennas)
  • 1x Receiver (with 2 antennas)
  • 1x Spare antenna
  • 1x Power supply (12V / 2A)
  • 1x Magic arm
  • 1x Angle adapter
  • 1x ziped transport bag
Connections & Connectivity
Inputs 3G-SDI
SDI input
Range (m) 250.0 m
Dimensions & Weight
Length (mm) 115.0 mm
Width (mm) 70.0 mm
Height (mm) 21.0 mm
General
Latency 70.0
Type Transmitter/receiver set
Recording & Codecs
Max. resolution 1080p
Power
Battery
