Canon CR-X500

Article number:

12454213

Canon CR-X500

The Canon CR-X500 is the ideal camera if you're looking for a remotely operated camera that can be used with minimal crew for outdoor work. The camera features 15x optical zoom and fits seamlessly into your documentary session, livestream production, reality show, event, or digital film production.

The camera has been specially designed for outdoor use and features IP55 water-resistant protection, preventing dust, water, dirt, or salt from damaging the camera lens and electronics. The CR-X500 incorporates many components also found in Canon's high-resolution cameras and camcorders, including the Canon DIGIC DV6 image processor, a 1-inch Dual Pixel CMOS sensor, a minimum illumination of 3 lux, 15x optical zoom and 30x digital zoom, a wide dynamic range, and video output up to UHD 4K via a 12G-SDI connector. In addition, the Canon CR-X500 offers further professional features, including genlock support, HLG and Canon Log 3 support, as well as built-in ND filters with clear 1/4, 1/16, and 1/64 options.

The camera delivers smooth and precise pan movements with a speed range of 0.5 to 25 degrees per second, and tilt movements with a speed range of 0.3 to 20 degrees per second. It also features a very low ambient noise rating of NC-55 at less than 10 degrees per second. You can easily control the camera using an external controller such as the RS-422 or Canon's own NU serial protocol, using the optionally available RC-IP100 PTZ controller. The built-in lens wiper ensures you don't have to manually clean the lens when it gets wet or dirty. The camera also features an AUX port, allowing you to add an optional wash unit.

Information on the EU General Product Safety Regulation (GPSR)

Canon Europa B.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

Features of the Canon CR-X500

  • 8.29 Megapixel 1" CMOS sensor with Dual-Pixel Autofocus
  • Video recording up to UHD 4K/30/1080p60
  • 12G-SDI video output and Genlock
  • IP55-rated dust and water-resistant housing
  • Built-in lens exchanger

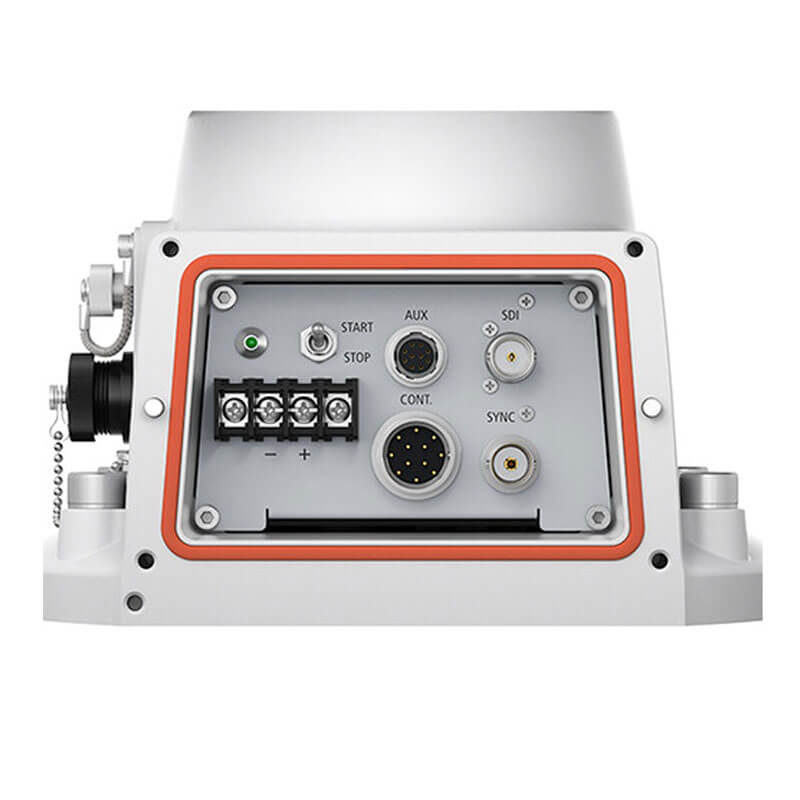

  • AUX expansion port
  • 15x optical zoom and 30x advanced zoom
  • Built-in ND filters 1/4, 1/6 and 1/64
  • Canon DIGIC DV6 processor
  • RS-422 and Canon NU serial control
  • Compatible with Canon PTZ controller

In the Box

  • Canon CR-X500
  • Waterproof tube
  • Control connector
  • Ferrite core
  • User manual
Connections & Connectivity
HDMI type None
Headphone output
NFC
SDI
Wi‑Fi
XLR audio
12G-SDI
Dimensions & Weight
Length (mm) 386.0 mm
Weight (g) 17000.0 g
Width (mm) 337.0 mm
Height (mm) 390.0 mm
General
Color White
Recording media SD
Audio
Built-in microphone
Display & Viewing
Touchscreen
Storage & Media
Card slots (Units) 1.0 Units
Wide-angle (35mm eq.) (mm) 25.5 mm
Optical zoom (x) 15.0 x
Recording & Codecs
10-bit recording
HDR (HLG/PQ)
Built-in ND
Relay/backup recording
Video resolution max 4K
Slow motion
Sensor
Sensor format 1-inch
Compatibility
Lens mount Other
Focus & Stabilization
Image stabilisation
Camera Functions
Autofocus present
Live streaming
