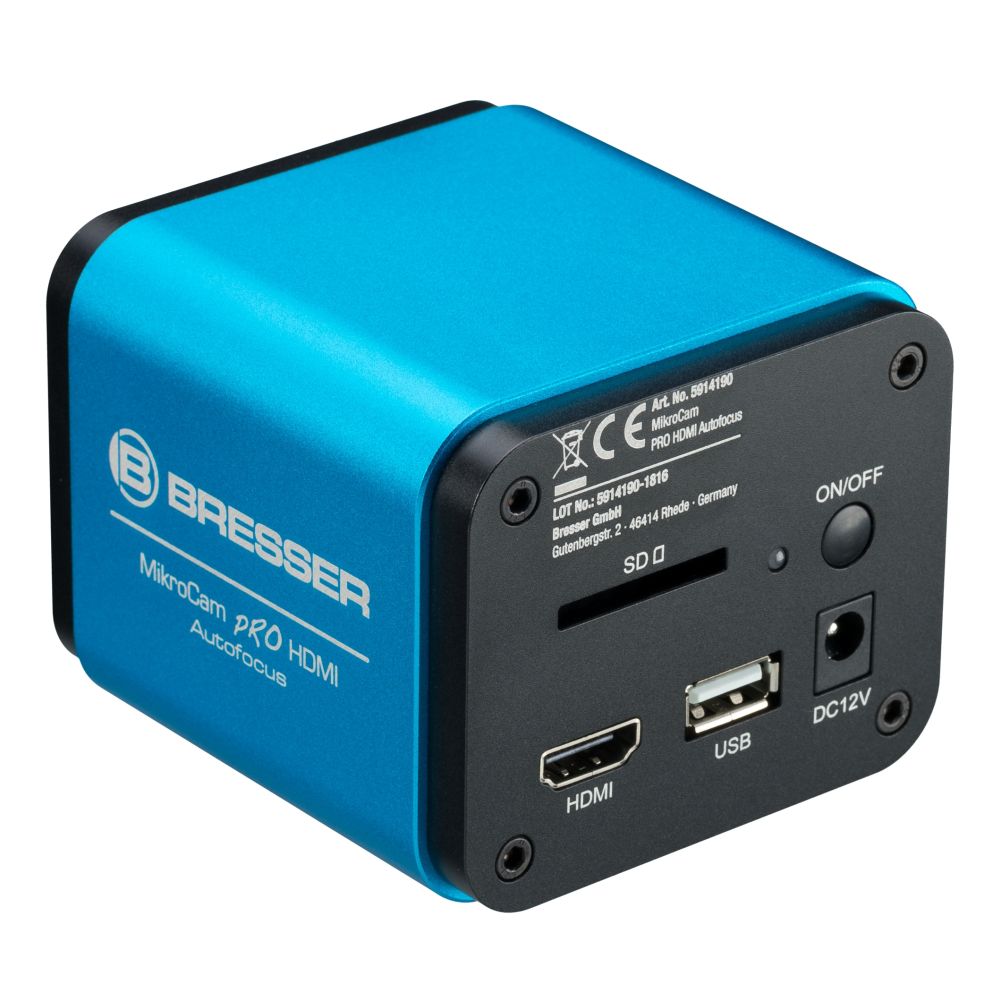

Bresser MikroCam PRO HDMI Autofocus Microscope Camera
The Bresser MikroCam PRO HDMI Autofocus Microscope Camera convinces by, thanks in part to its Sony IMX185 CMOS Sensor, its excellent image quality and user-friendly operation. The camera delivers the microscope image live and without delay. Using the HDMI signal, the image is transmitted in Full HD resolution to a monitor or TV. An optional 11" Bresser HDMI monitor can be connected directly to the camera and delivers brilliant and high-contrast images. The very high light sensitivity ensures good image quality even in low-light conditions. Therefore, this model is highly recommended for dark field or phase contrast.
The autofocus allows optimal focusing of the camera without using the microscope's focus knob. This ensures parfocality on a wide range of trinocular microscopes. The focus range extends from the 0 position, corresponding to the C-mount distance, over a focusing distance of up to 5.4 mm forward, also reaching the CS-mount distance, and additionally up to 10.6 mm inward to cover an even wider range. In addition to autofocus, the camera can also be manually focused with the mouse.
An adjustment of the focus to a specific area is also possible. Camera functions can be controlled with the mouse directly in the on-screen menu. Measurements can be performed via the on-screen menu, turning your microscope into a fully-fledged digital measurement microscope. The WiFi module also allows the camera to transmit images in a wireless network. This eliminates the need for a permanent connection to a PC via USB. The professional software MikroCamLab II is also included with the camera. This software can be used for further image analysis.
System requirements
- Windows 8.1 / 10 / 11
- Intel i3, i5, i7 or i9 processor of the 6th generation or
- AMD Ryzen processor
- Optical drive or internet connection to download software
- USB 2.0
Contents of packaging
- 1x Bresser MikroCam PRO HDMI Autofocus Microscope Camera
- 1x AC adapter
- 1x USB mouse
- 1x HDMI cable
- 1x WiFi dongle
- 1x Software (CD-ROM)
