The Blackmagic ATEM 2 M/E advanced panel 20 is a highly advanced enhancement to previous panel models to complement separately available professional ATEM switchers from Blackmagic Design.

Blackmagic ATEM 2 M/E Advanced Panel 20

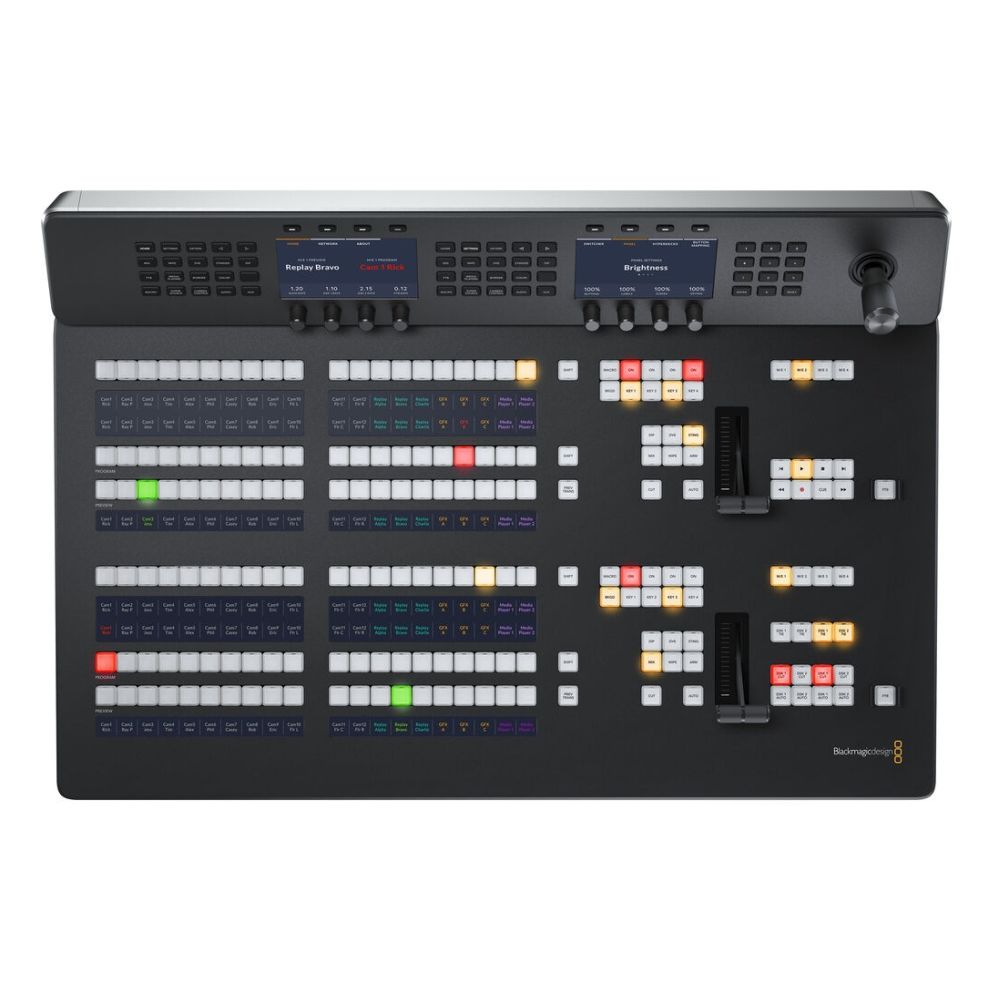

The Blackmagic ATEM 2 M/E Advanced Panel 20 is a highly advanced enhancement of previous panel models to complement Blackmagic Design's separately available professional ATEM switchers. Using features such as high-quality knobs, rotary controls, fader bars and a 3-axis joystick, you can tailor the comprehensive panel to your precise needs.

Complex live productions require a versatile control panel, and the ATEM 2 M/E Advanced Panel allows you to adjust, monitor and switch your live broadcast events with features such as changing cameras, performing transitions, fades, DVE effects, and also provides 8 on-air indicators. The panel features two rows of M/E with 20 input buttons per row, two LCDs for system control, independent LCDs for custom labels for each row and button, 20 direct intersections, 40 offset intersections, two sample transitions and various DSK transition selectors such as Auto, Cut and Tie/Preview.

The ATEM 2 M/E Advanced Panel connects to the switcher via 10/100/1000 BaseT Ethernet, and there are four Ethernet loop outputs for connection to another panel or to a media management computer. The panel receives firmware updates via the USB Type-C input.

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic ATEM 2 M/E Advanced Panel 20

  • ATEM Switcher Panel
  • 2x M/E Rows, 20x Input Buttons Each
  • 2x System Control LCDs
  • High Quality Buttons/Controls
  • 4x Gigabit Ethernet Ports with Loopouts
  • Custom labelling, Redundant Power
  • 12 On-Air Indicators, 20 Cross Points
  • 3-Axis Joystick, Keypad, 2x Fader Bars
  • USB Type-C Input for Firmware Updates
  • Dimensions: 111 x 72.5 x 16.6 cm
  • Weight: 11 kg

In the Box

  • 1x Blackmagic ATEM 2 M/E Advanced Panel 20
Dimensions & Weight
Weight (g) 11000.0 g
Compatibility
Compatible with brand/series Blackmagic ATEM-switchers
